Grafana Dashboards
Klio ships a Grafana dashboard template that visualizes the metrics it
exposes. The dashboard is generated from code with the
Grafana Foundation SDK
and committed to the repository at
observability/grafana/dashboards/klio.json.
The dashboard has two sections, each with its own filters that apply to all of its panels:
- Clusters, organized around the PostgreSQL clusters that Klio backs up.
- Servers, organized around the Klio servers.
The dashboard queries the Prometheus export of Klio's OpenTelemetry metrics, so it complements the OpenTelemetry setup rather than replacing it.
What the dashboard shows

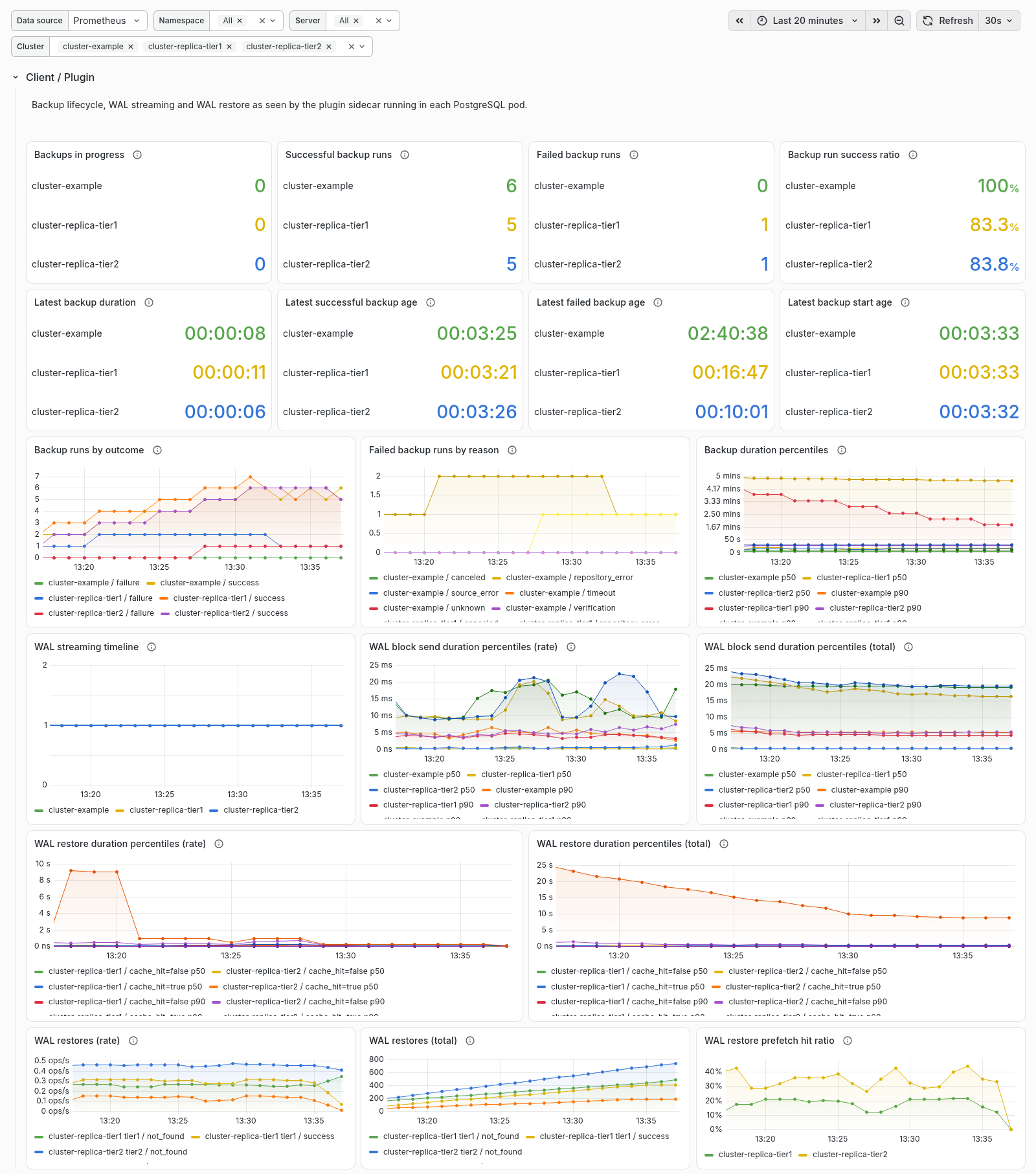

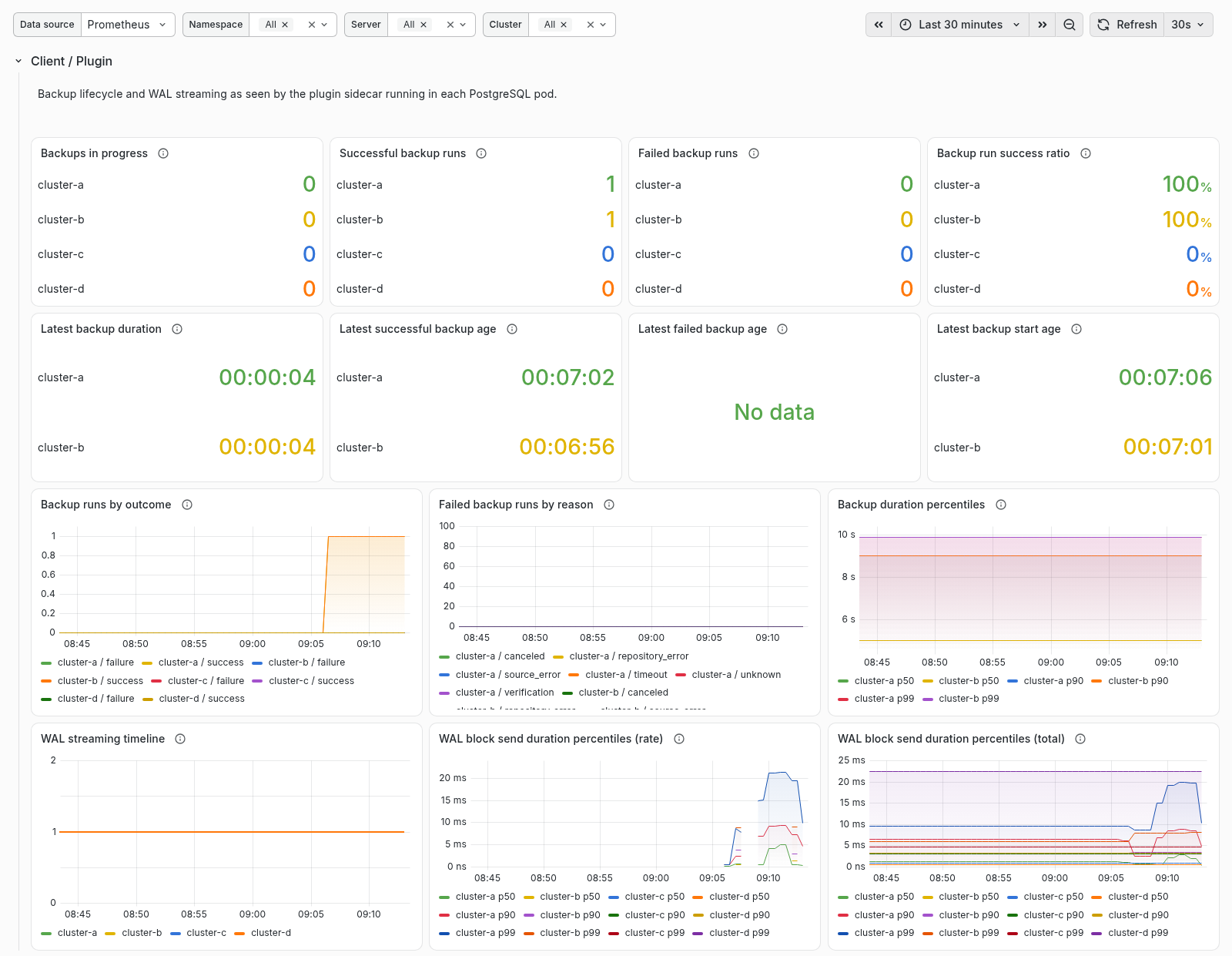

The Clusters section is split into rows:
-
Backups — the backup lifecycle as seen by the plugin sidecar running in each PostgreSQL pod: backups in progress, time since the last backup started, succeeded and failed, the latest backup duration, the p50/p90/p99 backup duration distribution, backup run and failure rates, and the backup success ratio.
-

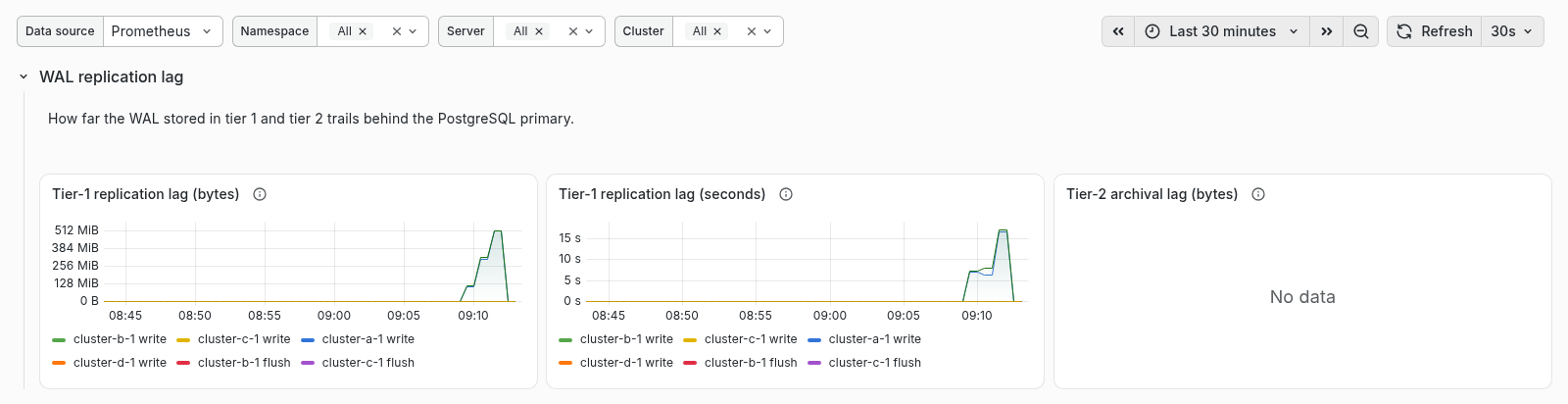

WAL streaming — the WAL streaming client the sidecar supervises as a child process: the PostgreSQL timeline it is currently streaming and the p50/p90/p99 latency of sending a WAL block to the server. Then the Tier-1 replication lag (bytes) and (seconds): how much WAL, and how much time, Klio is behind the PostgreSQL primary. The write line is WAL Klio has received; the flush line is WAL Klio has safely saved to disk. These two panels need CloudNativePG monitoring (see the prerequisites below).
-
WAL restore — the WAL restores the plugin serves back to PostgreSQL, per instance (pod), since each instance restores its own WAL through its own prefetch spool: the p50/p90/p99 restore duration (how long PostgreSQL waited for each WAL file, not the replay that follows), as both a rolling-window and a since-restart total variant, the restore rate and total by tier and outcome, the prefetch hit ratio, and the share of time PostgreSQL spent waiting on the plugin (near 0% when recovery is limited by replay, not by Klio).

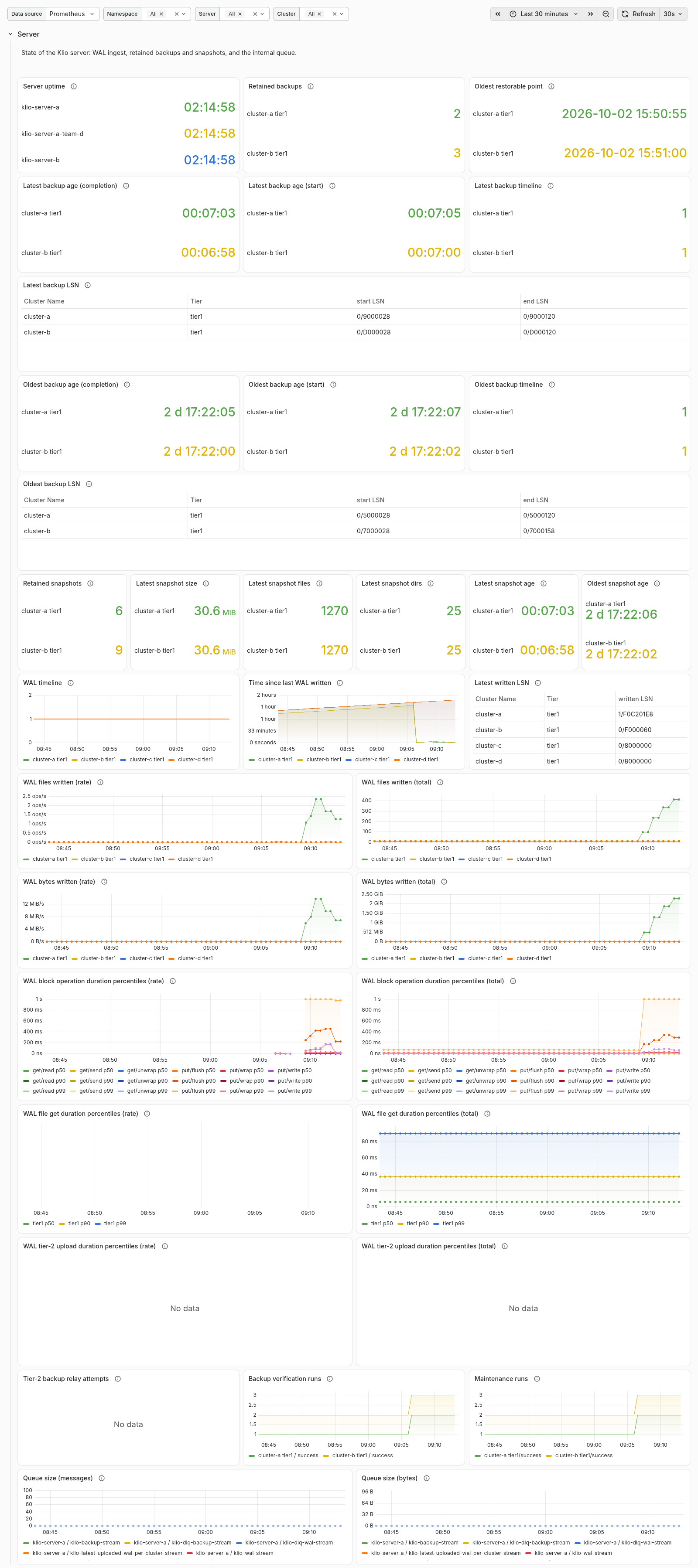

The Servers section is split into rows:
- Server health — the uptime of each Klio server and its embedded NATS JetStream queue.
- Retained backups — the retention window of the physical PostgreSQL backups the Klio server keeps for each cluster: counts by tier and server, latest/oldest backup age, start/end LSN and PostgreSQL timeline.
- Backup maintenance — tier-2 relay, backup verification and maintenance run totals per cluster.
- WAL — the WAL the selected servers write for the clusters they back up, per tier: time since the last WAL written, WAL bytes and files written, the Tier-2 archival lag (bytes) (how much WAL is on Klio's local disk, tier 1, but not yet copied to remote storage, tier 2), the PostgreSQL timeline and latest written LSN, and the p50/p90/p99 tier-2 upload duration. Then the p50/p90/p99 WAL block and get duration by path, stage and tier. Every percentile panel comes as both a rolling-window and a since-restart total variant.
- Kopia snapshots — the base snapshot inventory, including file and directory counts.

Some panels need extra context to interpret correctly. Two are derived from the alerting guidance in OpenTelemetry:
- Time since last WAL written surfaces the staleness signal described under Alerting on stalled WAL processing: a stale tier-1 value means PostgreSQL is no longer shipping WALs, while a stale tier-2 value means the remote backend is no longer receiving them.
- Tier-2 archival lag (bytes) plots the LSN difference between tier 1 (local disk) and tier 2 (remote storage). Read together with the staleness panel, it tells a slow pipeline (timestamps advancing, gap growing) apart from a stalled one (timestamps and LSN both frozen).
One more is a statistical caveat rather than an alerting signal:
- WAL restore duration percentiles pool prefetch hits, a local rename, and misses, a wait on a download, which are orders of magnitude apart. With a high hit ratio the lower percentiles describe hits, around a millisecond, and misses only show in the upper percentiles. Read them together with the WAL restore prefetch hit ratio, whose fall over time means prefetch is no longer keeping up with replay on that instance, and the WAL restore wait share, which shows how much the waiting costs.
Prerequisites
The dashboard needs Grafana 13.1 or later. It uses the dashboard schema v2 (dynamic dashboards), where each section declares its own variables. Any of these provides it:
- The kube-prometheus-stack chart, whose current releases install Grafana 13.2 (see the example below).
- The Grafana Helm chart,
setting
image.tagto 13.1 or later if the chart default is older. - The
grafana/grafanacontainer image, tag 13.1 or later. - Grafana Cloud.
The dashboard reads the Prometheus names of Klio's metrics (for example
klio_plugin_backup_runs_total and klio_server_wal_written_total). You
therefore need Prometheus scraping those metrics. Any of the export paths
described in OpenTelemetry works:
- An OpenTelemetry Collector with a Prometheus exporter that Prometheus scrapes.
- The Klio Prometheus exporter (
OTEL_METRICS_EXPORTER=prometheus), scraped directly.
The tier-1 replication lag panels of the Clusters section additionally read
CloudNativePG's cnpg_pg_stat_replication_* metrics. To populate them,
scrape the CloudNativePG cluster monitoring (its PodMonitor) into the same
Prometheus. The rest of the dashboard works without it.
When you route metrics through an OpenTelemetry Collector, enable
resource_to_telemetry_conversion on the Prometheus exporter so that
resource attributes such as the pod and namespace become Prometheus labels.
The sample collector under
operator/config/samples/opentelemetry/base/otel_collector.yaml already does
this.
Importing the dashboard
The dashboard file is a Grafana resource (dashboard.grafana.app/v2, named
klio), the format Grafana uses for schema v2 dashboards.
- In Grafana, go to Dashboards → New → Import.
- Paste the contents of
observability/grafana/dashboards/klio.jsonand select Load. - Select your Prometheus data source for the
datasourcevariable.
The dashboard declares a datasource variable, so it is portable across
Grafana installations and is not tied to a specific data source UID. The
variables of each section filter its panels.
On the Clusters section:
namespace: the namespace where the PostgreSQL cluster runs, matched againstk8s.namespace.name.cluster: the PostgreSQL cluster, matched againstcluster_name. It lists every cluster that emits Klio plugin metrics, including clusters that only restore from a Klio server.pod(Instance): the PostgreSQL pod, matched againstk8s.pod.name. It scopes the panels built from the plugin metrics and the tier-1 replication lag panels, which CloudNativePG reports from the primary.
The Clusters section shows only client-side metrics. The server-side ones, which carry the server's own namespace and pod rather than the cluster's, are in the Servers section.
On the Servers section:
server_namespace(Server namespace): the namespace where the Klio server runs, which can differ from the namespace of the clusters it backs up.server: the name of the KlioServer, taken from its pod name (<server>-klio-<ordinal>). A server is identified by its namespace and name: with Server namespace set to all, two servers with the same name in different namespaces share one entry, so select the namespace to tell them apart.served_cluster(Served cluster): the clusters backed up by the selected servers, from any namespace. It does not filter the server health panels, which have no cluster label.
Every aggregation groups by the identifying label (cluster, server, tier), so multiple clusters or servers are never folded into a single misleading value.
Example: kube-prometheus-stack
This example follows the same flow as the CloudNativePG quickstart, using the kube-prometheus-stack chart. Adapt it to your own Prometheus/Grafana if you run a different setup — only the metric prerequisites described above are required.
Install Prometheus and Grafana:
helm repo add prometheus-community \
https://prometheus-community.github.io/helm-charts
helm upgrade --install \
-f https://raw.githubusercontent.com/cloudnative-pg/cloudnative-pg/main/docs/src/samples/monitoring/kube-stack-config.yaml \
prometheus-community prometheus-community/kube-prometheus-stack
Ensure Prometheus scrapes Klio's metrics by deploying a ServiceMonitor (or a
PodMonitor, if the collector's Service has no labels) for the
OpenTelemetry collector's Prometheus exporter — see
operator/config/samples/opentelemetry/base/otel_collector_svc_monitor.yaml.
Port-forward Grafana and log in with admin / prom-operator:
kubectl port-forward svc/prometheus-community-grafana 3000:80
Open http://localhost:3000/ and import
observability/grafana/dashboards/klio.json via Dashboards → New →
Import, selecting your Prometheus data source.
Alternatively, load it automatically through the Grafana dashboard sidecar
with a labeled ConfigMap:
kubectl create configmap klio-grafana-dashboard \
--from-file=observability/grafana/dashboards/klio.json
kubectl label configmap klio-grafana-dashboard grafana_dashboard=1
Create the ConfigMap with kubectl create, as above: kubectl apply
stores a copy of the dashboard in an annotation, which exceeds the
Kubernetes size limit for annotations.
Regenerating the dashboard
The committed JSON is generated from the Go program under
observability/grafana/. To regenerate it after changing the generator (or
after a grafana-foundation-sdk bump), run from the repository root:
task grafana:gen
CI runs task grafana:uncommitted, which regenerates the dashboard and
fails if the committed JSON has drifted from the generator output. Commit
the regenerated file whenever it changes.
